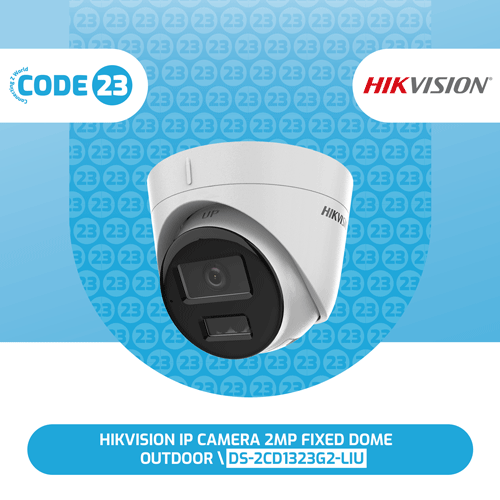

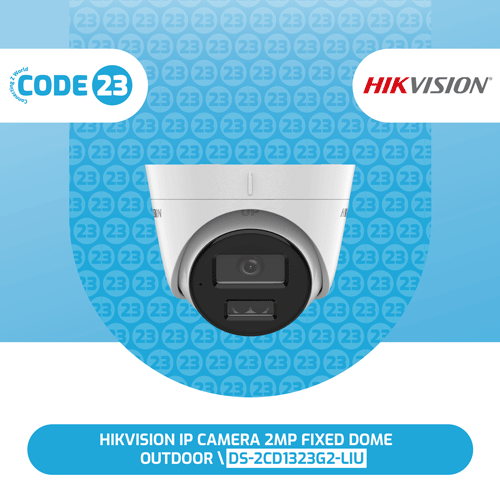

HikVision IP Camera 2MP Fixed Dome Outdoor\

DS-2CD1323G2-LIU

The Hikvision DS-2CD1323G2-LIU is a compact and high-performance 2MP outdoor fixed dome IP camera, designed for reliable, round-the-clock surveillance in various outdoor environments. Part of Hikvision’s Value Series with AcuSense Lite technology, this camera combines high-definition imaging, smart detection features, and built-in audio—all in a rugged, weather-resistant dome form factor.

Key Features

1. Full HD 2MP Resolution:
Equipped with a 2MP progressive scan CMOS sensor, the camera captures video at 1920 × 1080 resolution, ensuring crystal-clear footage suitable for identifying faces, vehicles, or objects in both daytime and low-light conditions.

2. Smart IR with 30m Night Vision:
Featuring EXIR 2.0 infrared technology, the DS-2CD1323G2-LIU delivers clear, evenly illuminated black-and-white images in complete darkness up to 30 meters, making it ideal for 24/7 outdoor surveillance.

3. Built-in Microphone:
With an integrated high-sensitivity microphone, the camera captures synchronized audio alongside video, providing greater situational awareness and valuable evidence in case of incidents.

4. AcuSense Motion Detection 2.0:
The camera incorporates AcuSense Lite technology, enabling intelligent detection features such as human and vehicle classification to reduce false alarms caused by motion from animals, weather, or foliage.

5. H.265+ Video Compression:

The DS-2CD1323G2-LIU uses H.265+ compression to minimize bandwidth usage and reduce storage costs, while preserving video quality—making it highly efficient for networked systems with limited resources.

6. Weather and Vandal Resistance:
Built for harsh conditions, the camera is housed in an IP67-rated enclosure, offering complete protection from dust and water. Its rugged dome design also provides resistance to tampering and vandalism in exposed outdoor areas.

7. Wide-Angle Coverage:
With a 2.8mm fixed lens, the camera delivers a wide horizontal field of view (~103°)—ideal for monitoring entrances, perimeters, and open areas with minimal blind spots.

8. Easy Integration and Remote Viewing:
Compatible with ONVIF and Hikvision platforms such as Hik-Connect and iVMS-4200, the camera is easily integrated into new or existing surveillance systems. Remote access via smartphone or PC allows users to monitor footage in real time, anywhere, anytime.

Ideal Use Cases

• Residential driveways and gates

• Office or shop entrances

• Building perimeters

• Parking lots

• Warehouse loading areas

Conclusion

The Hikvision DS-2CD1323G2-LIU offers a powerful combination of high-quality video, intelligent detection, and audio capture in a durable, weatherproof design. Perfect for outdoor installations that require reliable, budget-friendly, and intelligent surveillance, this camera provides exceptional performance with easy integration into any IP security system.

• Image Sensor1/2.9″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• Lens
• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

  4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

• Lens MountM12
• Iris Type Fixed
• ApertureF1.6

• DORI

  2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

  4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

• Illuminator
• Supplement Light TypeIR, White Light
• Supplement Light Range Up to 30 m
• Smart Supplement Light Yes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 Type Baseline Profile, Main Profile, High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR, VBR
• Region of Interest (ROI)1 fixed region for main stream

• Audio
• Audio Type Mono sound
• Environment Noise Filtering Yes
• Audio Sampling Rate8 kHz/16 kHz
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps
• (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Network
• Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
• Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Wide Dynamic Range (WDR)Digital WDR
• SNR≥ 52 dB
• Day/Night Switch Day, Night, Auto, Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain ,white balance ,adjustable by client software or web browser
• Privacy Mask4 programmable polygon privacy masks
