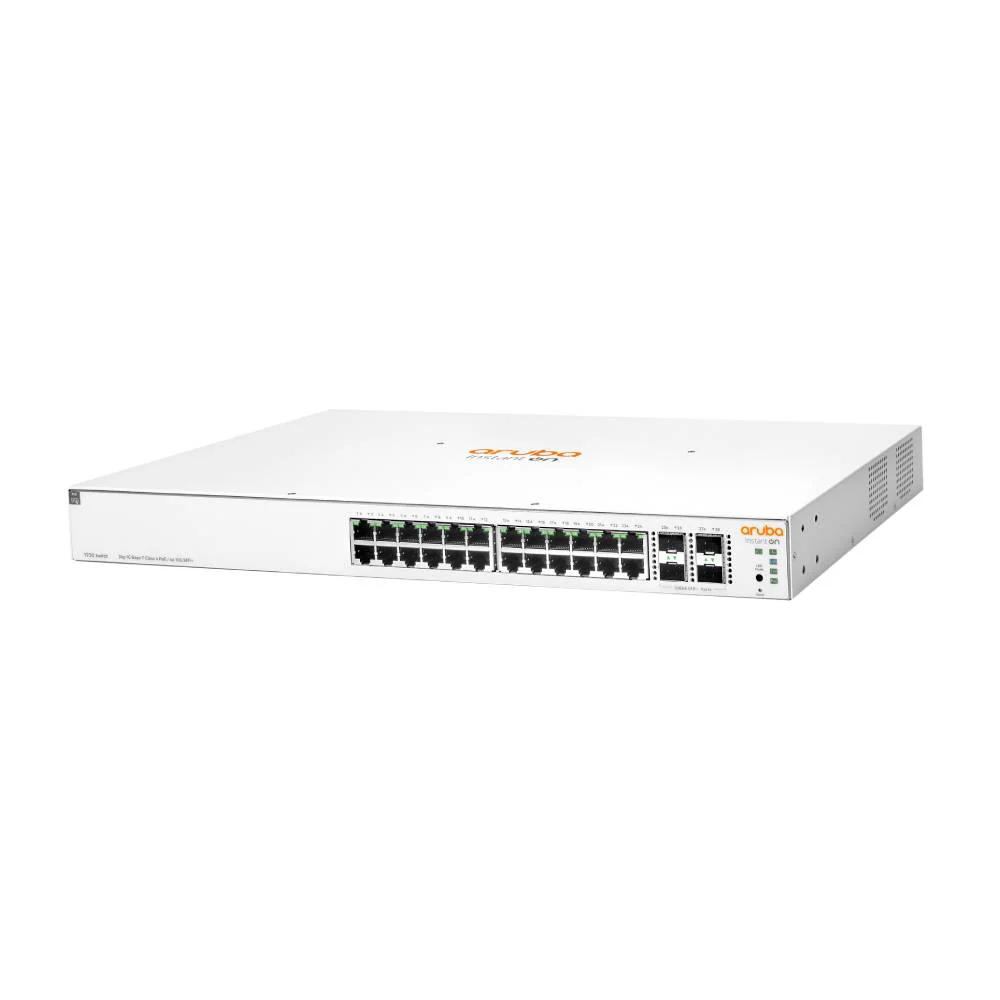

Aruba Switch Hp 24 Port Gigabit, smart managed,

4x 10G, 1930 24G \ JL682A

The Aruba JL682A is a high-performance 24-port Gigabit smart managed switch, designed to provide secure,

reliable, and high-speed connectivity for modern small and medium-sized businesses. Part of the Aruba 1930 Series,

this model stands out with its four 10G SFP+ uplink ports, offering exceptional scalability and performance for growing network environments.

Key Features:

• 24x Gigabit Ethernet Ports:
  These ports deliver reliable and fast wired connections for a wide range of devices including computers,

• printers, VoIP phones, and access points.

• 4x 10G SFP+ Uplink Ports:
  The inclusion of four 10 Gigabit SFP+ ports allows for high-speed fiber uplinks, enabling fast data transfers,

• efficient backbone connectivity, and seamless integration with core switches or servers.

• Smart Managed Functionality:
  Offers essential Layer 2+ capabilities such as VLANs,

• link aggregation, QoS, static routing, and access control lists (ACLs),

• making it a flexible and secure solution for structured network management.

• Web and Cloud-Based Management:
  Easily configured and monitored via a user-friendly web interface or through

• the Aruba Instant On cloud portal, giving administrators the freedom to manage the network remotely and securely.

• Enhanced Security Features:
  Supports enterprise-grade security protocols including 802.1X, MAC-based authentication, DHCP snooping,

• and protection against DoS attacks – safeguarding network integrity at every level.

• Fanless, Silent Operation:
  Designed with a fanless architecture, the JL682A ensures silent performance, making it ideal for noise-sensitive environments like offices, retail stores, and healthcare facilities.

• Energy Efficient & Reliable:
  Built to reduce power consumption without compromising performance.

• The switch also comes with a limited lifetime warranty, ensuring long-term peace of mind.

Ideal For:

• Small and medium-sized businesses

• Branch and remote office deployments

• High-speed connections to servers or core switches

• Surveillance and VoIP networks

• Environments requiring quiet, energy-efficient operation

Conclusion:

The Aruba JL682A 1930 24G Smart Managed Switch offers the perfect blend of advanced features,

high-speed performance, and user-friendly management. With 24 Gigabit ports and four 10G uplinks,

it delivers the flexibility and power modern businesses need to stay connected, scalable, and secure.

• I/O ports and slots	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only   4 SFP+ 1/10GbE ports
  Dimension	17.42(w) x 8.72(d) x 1.73(h) in (44.25 x 22.15 x 4.39 cm) (1U height)
  Processor and memory	ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
  Throughput (Mpps)	95.23 Mpps
  Switching capacity	128 Gbps
  Operating temperature	32°F to 104°F (0°C to 40°C)
  Operating relative humidity	15% to 95% @ 104°F (40°C)
  Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
  Nonoperating/Storage relative humidity	15% to 95% @ 140°F (60°C)
  Altitude	up to 10,000 ft (3 km)
  Idle power	9.3 W
  PoE	Not support
  Power Supply	Internal power supplysw
