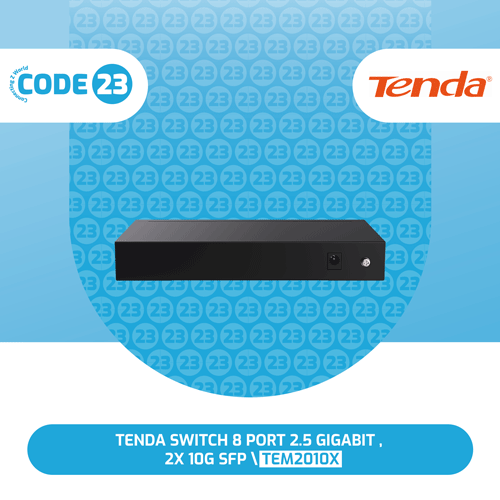

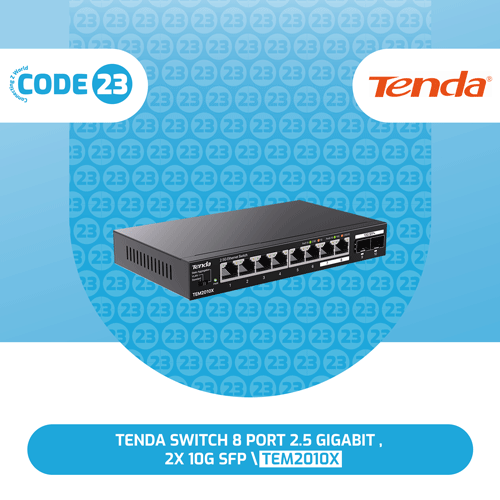

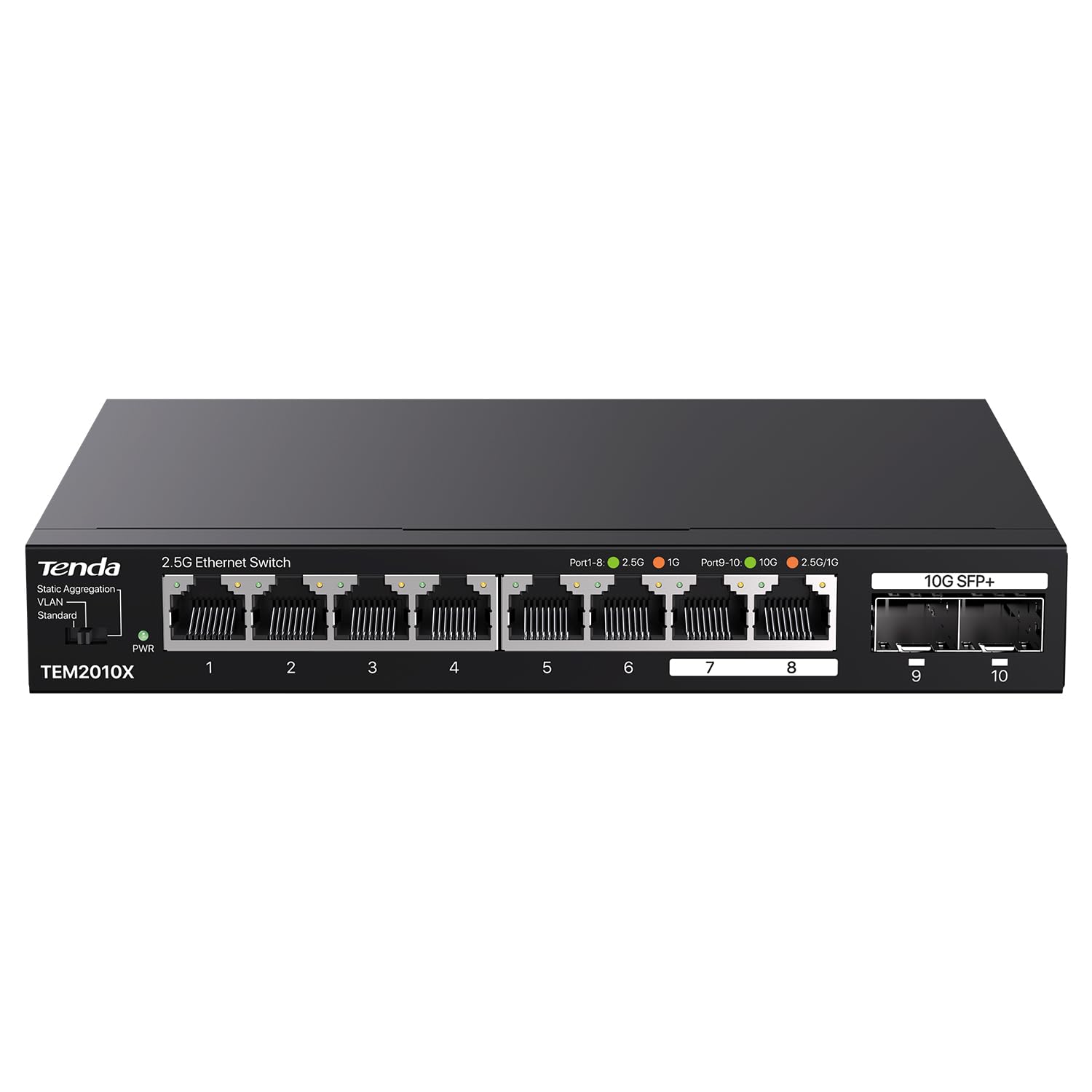

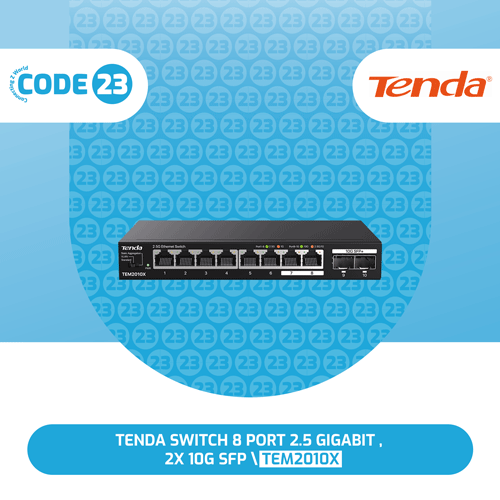

Tenda Switch 8 Port 2.5 Gigabit , 2x 10G SFP \ TEM2010X

, the Tenda TEM2010X emerges as a powerful and cost-effective solution.
Designed to meet the needs of small-to-medium enterprises and tech enthusiasts,
this 10-port unmanaged switch provides impressive speed, efficiency, and plug-and-play simplicity.
Key Features:
-
8 x 2.5 Gigabit Ethernet Ports:
Unlike standard 1G switches, the TEM2010X offers eight 2.5G RJ45 ports, delivering up to 2.5 times the speed of traditional Gigabit connections. This boost is ideal for high-bandwidth tasks such as transferring large files, -
video editing, or running multiple IP surveillance cameras.
-
2 x 10G SFP+ Uplink Ports:
For even higher-speed uplinks or backbone connections, the switch includes two 10G SFP+ fiber ports, making it future-proof for expanding networks and ensuring smooth data transmission between servers, core switches, or storage devices. -
High Performance with Stability:
The TEM2010X features a 56 Gbps switching capacity, enabling full-speed, -
non-blocking data forwarding across all ports simultaneously. It’s designed with a fanless metal housing for silent operation while ensuring durability and heat dissipation.
-
Plug-and-Play Simplicity:
-
With no configuration required, users can simply plug in their devices and instantly -
benefit from the increased speed.
-
The switch supports auto-negotiation and MDI/MDIX for hassle-free connectivity.
-
Compact and Sleek Design:
Its modern, minimalist form factor allows it to blend into any office or desktop setup -
while maintaining high functionality and professional appeal.
Ideal Use Cases:
-
Creative Professionals & Content Creators: Seamless editing and transferring of large video/audio files without bottlenecks.
-
Gaming & Streaming: Low-latency connections for smooth online gaming and 4K/8K streaming.
-
SMB Environments: Suitable for high-speed office networks, NAS servers, and IP surveillance systems.
-
Home Labs & Enthusiasts: An excellent upgrade for tech-savvy users looking to build robust, high-speed home networks.
Conclusion:
The Tenda TEM2010X is a feature-rich, future-ready network switch that balances affordability with performance. Whether you’re upgrading your home network, powering a small business infrastructure, or supporting demanding data workloads, this switch delivers the speed and reliability that modern users expect — all without the complexity of managed setups.
Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz,IEEE 802.3ae,IEEE 802.3z |
LED Indicator | Power Link/Act |
Interfaces | (8)2.5GE RJ45 ports (2)10GE SFP+ ports |
Transmission media | Recommended: CAT5/5e UTP or better |
Dimensions | 177mm*104mm*26mm |
Material | Metal |
Level of protection | Port: 6 KV |
Forwarding mode | Store-and-forward |
Switch capacity | 80Gbps |
MAC address table | 59.5Mpps |
Power method | 100-240V AC 50/60Hz |
Power consumption | Max:<12W |
Mounting | Desktop mounting: support Wall mounting: support |
Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Certifications | FCC, CE, RoHS, UKCA |
Funtions | 1. Standard: In this mode, all ports can communicate with each other. 2. VLAN: Ports 1-6 are isolated from each other, but can communicate with ports 7-10 3. Static Aggregation: Group 1: 7-8. For dual-port 2.5G NAS, up to 5 Gbps |
Protocols | FCC, CE, RoHS, UKCA |
