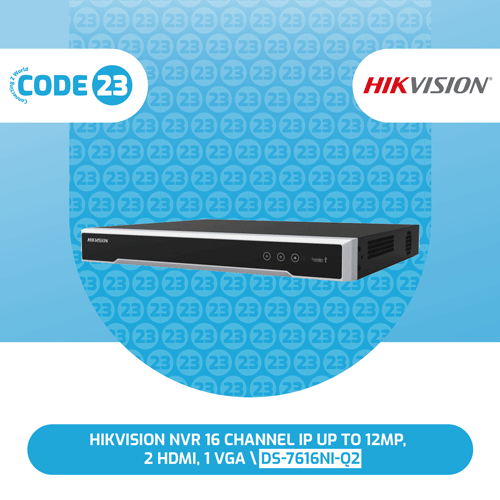

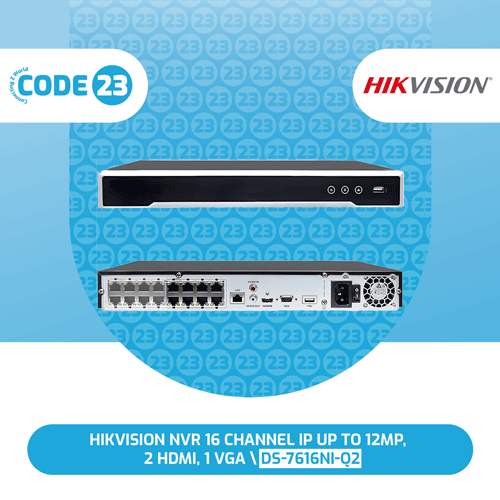

HikVision NVR 16 Channel IP Up to 12MP, 2 HDMI,

1 VGA \ DS-7616NI-Q2

The Hikvision DS-7616NI-Q2 is a robust and reliable 16-channel IP Network Video Recorder (NVR) engineered to meet the demands of modern surveillance systems. Supporting IP cameras up to 12MP, this NVR delivers superior video quality, reliable performance, and smart connectivity options. Ideal for small to medium-scale deployments, the DS-7616NI-Q2 is perfectly suited for environments such as offices, retail outlets, schools, and residential complexes.

Key Features

1. 16-Channel IP Camera Support:

The NVR supports up to 16 IP camera inputs, allowing full high-definition surveillance coverage across multiple zones. It’s compatible with third-party network cameras via ONVIF protocol, giving users flexibility in system design.

2. High-Resolution Recording – Up to 12MP:

With support for recording resolutions up to 12 megapixels, the DS-7616NI-Q2 ensures that even the smallest visual details are captured with clarity. This high-resolution capability makes it ideal for applications requiring precise image reproduction, such as facial recognition or license plate capture.

3. Dual HDMI and VGA Video Output:

The NVR features two HDMI ports (with one supporting 4K output) and one VGA port, enabling simultaneous live display on multiple monitors. This is particularly beneficial for surveillance centers or control rooms needing high-resolution monitoring across several displays.

4. Efficient Video Compression:

Equipped with H.265+/H.265/H.264+/H.264 video compression technologies, the DS-7616NI-Q2 ensures optimal storage usage and efficient bandwidth management. This reduces file sizes without compromising video quality, allowing for longer recording retention periods on limited storage space.

5. Storage Capacity:

The device offers 2 SATA interfaces, each supporting up to 10TB, for a total of up to 20TB of internal storage. This provides ample room for storing high-resolution video footage over extended periods.

6. Remote Viewing and Smart Management:

With support for Hik-Connect and iVMS-4200, users can easily access live or recorded video via PC or mobile devices. This remote management functionality is critical for quick response and real-time decision-making, especially in off-site scenarios.

7. User-Friendly Interface and Operation:

The NVR comes with an intuitive graphical user interface that simplifies configuration, playback, backup, and system management. With smart search, motion detection, and event-based alerts, users can efficiently locate and respond to security events.

Applications

The DS-7616NI-Q2 is well-suited for various applications, including:

• Retail stores and shopping malls

• Corporate offices and SMEs

• Educational institutions

• Apartment complexes and gated communities

• Healthcare centers and clinics

Conclusion

The Hikvision DS-7616NI-Q2 offers a reliable and scalable surveillance solution with support for high-resolution IP cameras, advanced video output options, and efficient video storage. Whether you’re upgrading an existing system or building a new one, this NVR provides a powerful blend of performance, ease of use, and intelligent design. It’s an excellent choice for businesses and institutions that value security, flexibility, and future-ready technology.

• Motion Detection 2.0
• Human/Vehicle Analysis4-ch

• Video and Audio
• IP Video Input16-ch
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding
• Decoding FormatH.265+,H.265,H.264+,H.264
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Decoding Capability

  1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

  *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• Synchronous playback16-ch

• Network
• Remote Connection32
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 8 TB capacity for each disk
• USB Interface2 × USB 2.0

• General
• Power Supply12 VDC, 3.33 A
• Consumption≤ 15 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Chassis1U chassis
• Dimension (W × D × H)385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
• Weight≤ 1.8 kg (without HDD, 4.0 lb.)
