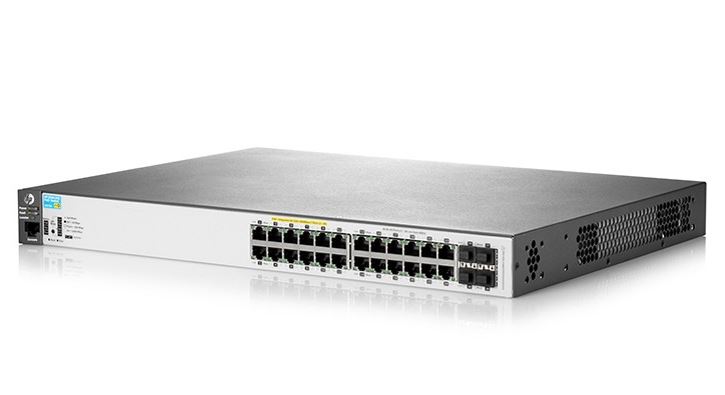

Aruba Switch Hp 24 Port Gigabit, managed L2 ,

4x SFP 1G, 2530 24G, (195 W ) \ J9773A

The Aruba HP 2530 24G (J9773A) is a reliable, energy-efficient, Layer 2 managed switch designed for enterprise edge,

branch offices, and SMB networks requiring secure and high-performance wired connectivity.

With 24 Gigabit Ethernet ports and 4 dedicated SFP ports for fiber uplinks,

the switch offers advanced management features, strong security capabilities, and excellent scalability.

Key Features:

• 24 x Gigabit Ethernet Ports:
  Delivers high-speed connectivity for end-user devices, including PCs, IP phones, access points,

• and printers—making it ideal for access-layer deployments.

• 4 x SFP 1G Uplink Ports:
  Provides flexible fiber uplink options for extended distance and high-performance connectivity

• to aggregation or core layers.

• Layer 2 Management:
  Supports VLANs, link aggregation, Spanning Tree Protocol (STP), LLDP, IGMP Snooping,

• and advanced Quality of Service (QoS), enabling network segmentation, redundancy, and efficient traffic handling.

• 195W Power Budget:
  Sufficient internal power supply to support Power over Ethernet (PoE) devices across the network, such as IP phones, surveillance cameras, and wireless access points (PoE support depends on configuration).

• Secure and Flexible Management:
  Manageable via intuitive web GUI, command-line interface (CLI), or SNMP. Compatible with Aruba AirWave and Aruba Central for cloud-based monitoring and provisioning. Includes secure access controls, RADIUS/TACACS+, and ACLs.

• Energy Efficient:
  Compliant with Energy Efficient Ethernet (EEE) standards to reduce power consumption during low network activity, supporting green IT initiatives.

• Durable and Rack-Mountable:
  Built with a robust metal chassis designed for 1U rack installation, ensuring reliable 24/7 performance in professional network environments.

Ideal Use Cases:

• Small to medium-sized businesses seeking managed wired network infrastructure

• Enterprise edge environments requiring secure and scalable connectivity

• Schools, hospitals, and retail setups deploying PoE devices and fiber uplinks

Technical Specifications:

• Model: Aruba HP 2530 24G – J9773A

• Ports: 24 x 10/100/1000 Mbps + 4 x SFP 1G

• Power Budget: 195W (depending on PoE model/version)

• Switching Capacity: 56 Gbps

• Forwarding Rate: 41.7 Mpps

• Layer Support: Layer 2

• Form Factor: Rack-mountable (1U)

Conclusion:

The Aruba HP 2530 24G (J9773A) offers robust Layer 2 switching features, flexible fiber uplink options,

and power capabilities—all in a compact, enterprise-ready form factor.

Whether deployed at the edge of a corporate network or in a growing SMB environment,

this switch provides the performance, reliability, and security needed for today’s demanding network infrastructures.
